Fiber laser cutting machine equipment can make cutting easier. For some enterprises in need, this equipment can also be used to solve the cutting problem. Now, some enterprises no longer need to worry about workpiece cutting, so they can use such equipment to complete the relevant cutting work, which has become a cutting equipment worthy of enterprises' attention.

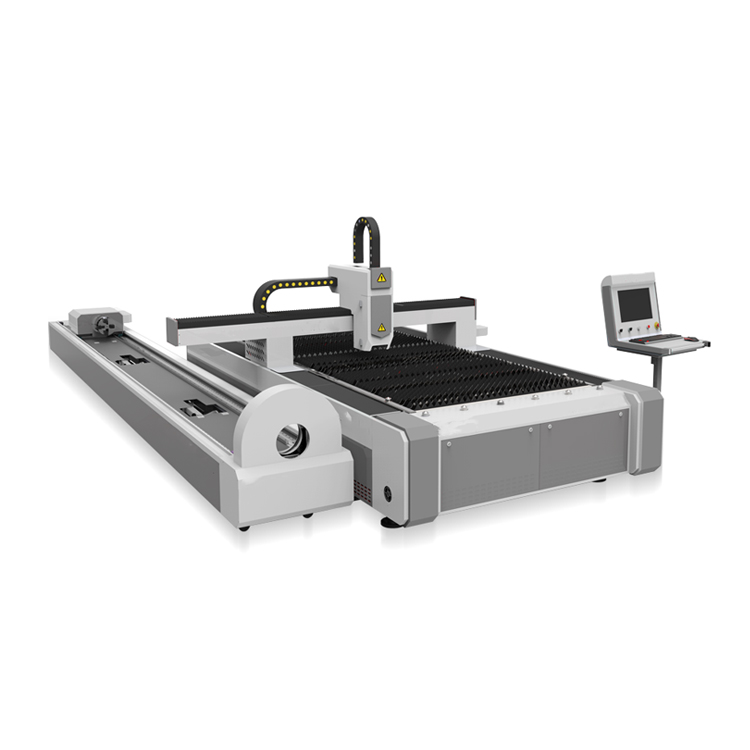

| Model | HN-3015/HN-2040/HN-2060 |
| Working are | 3000mm*1500mm |
| Miximum length of pipe(Options) | 3000mmor6000mm |
| Limits of pipe(Customized) | Circular tube: Φ20mm~Φ120mm;Square tube: Φ20mm~80mm |
| Laser type | Fiber laser generator |
| Laser power(optional) | 500~2000W |
| Transmission system | Double serve motor ＆gantry＆rack＆pinion |
| Pipe cutting system(optional) | Yes |
| Maximum speed | 100m/min |
| Maximum accelerated speed | 1.0G |
| Position accuracy | ±0.15mm/1000mm |
| Reposition accuracy | ±0.02mm/1000mm |
| Graphic format supported | CAD,DXF(etc) |
| Working environment | Temp:0-40℃,humidity:≤80%,No condensation |
| Total power | 10KW |
| Power supply | 380V/50Hz/60Hz |
| Overall dimension(include cutting machine in 3 meters long) | 4350mm*3200mm*1740mm |
| Overall dimension(include cutting machine in 6 meters long) | 7650mm*3200mm*1740mm |
product details
Servo Motor
Y axis: Double sets Japanese FUJI Servo motors and drivers.
X axis: Japanese FUJI Servo motor and driver Our X Y axis structure increases machine speed and precision and more stable for machine working.
Z axis: Japanese Servo motor and driver.
Product application

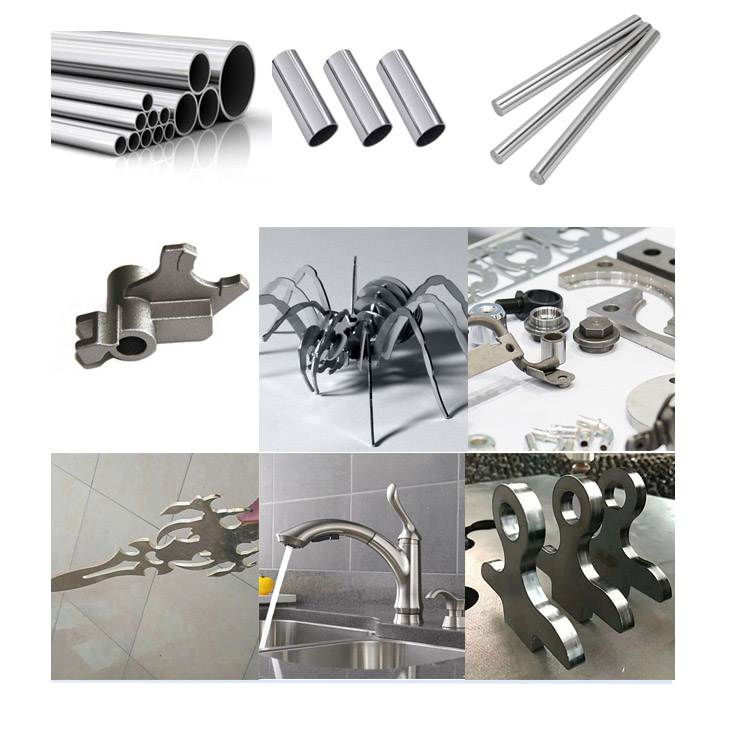

It can cut a variety of metal plates and pipes, mainly suitable for fast cutting of stainless steel, carbon steel, manganese steel, galvanized steel, various alloy plates, rare metals and other materials;
Widely used in: kitchen electrical, sheet metal chassis, machine frame equipment, electrical equipment, lighting hardware, advertising signs, auto parts, display equipment, various metal products, sheet metal cutting and processing industries;
Factory introduction
Shandong honest Machinery Co., Ltd. is a provincial key enterprise specializing in mechanical product R & D; Development of numerical control equipment. It integrates development, production and sales.
The company has a series of optical fiber laser cutting machines, plasma cutting machines, which are widely used in machinery, mold, advertising, metal processing, The equipment is sold to all provinces and autonomous regions in China and exported to Asia, Europe, North America, South America, Africa and other countries. It has advanced manufacturing technology, large production scale and high product quality. Professional user training and timely after-sales service are the basis to ensure customer satisfaction.
Packaging Details:
1. Outside package: Standard marine export plywood case.
2. Inner package: Stretchy film and plastic film for humidity.
We can package according to your requests.
Delivery Detail: Shipped in 3-20 working days after payment.
