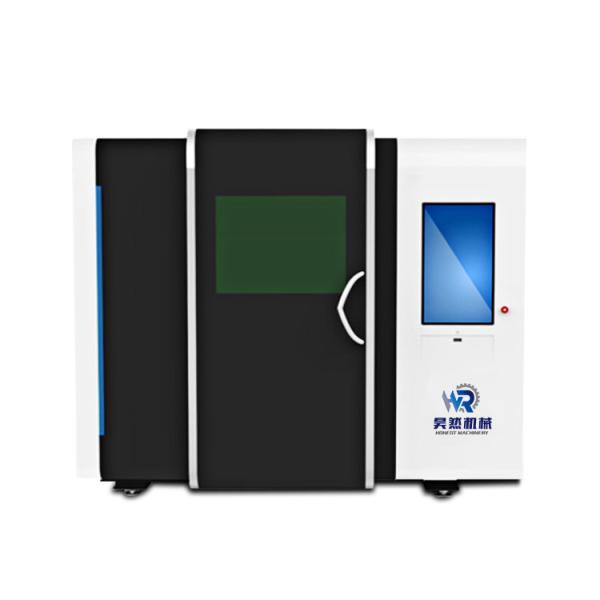

Laser Cutting Machine 1000W CNC Fiber Laser Cutter Sheet Metal

Name: Laser Cutting Machine 1000W CNC Fiber Laser Cutter Sheet Metal
Brand: HONEST
Price: 18000 USD

Buy cheap Laser Cutting Machine 1000W CNC Fiber Laser Cutter Sheet Metal product

Brand Name : HONEST

Model Number : HN3015

Certification : CE ISO

Place of Origin : CHINA

MOQ : 1Set

Price : $18000-$80000/set

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 20sets/Month

Delivery Time : 30 work days

Packaging Details : The inner packing is plastic film and the outer packing is wooden box or plywood Only plastic sheeting wrapped naked with woode

Name : Laser Cutting Machine 1000W Price CNC Fiber Laser Cutter Sheet Metal

Condition : New

Voltage : 220V/380V or customized

Warranty : 2 Year

Cutting thickness : 0-30mm

Graphic format supported : DXF,PLT

Cutting speed : 120/min

Cutting area : 1500*3000mm,3000*1500mm

Control system : Cypcut

Laser source : Raycus or IPG or Max

Contact Now

Laser Cutting Machine 1000W Price CNC Fiber Laser Cutter Sheet Metal

Product Overview

Fiber laser is a new type of optical fiber laser developed in the world. It outputs high energy density laser beam and concentrates on the surface of workpiece, making the area irradiated by ultra-fine focal spot on the workpiece instantaneously melt and vaporize. Automatic cutting is realized by moving the spot irradiated position by CNC mechanical system.Compared with gas laser and solid laser, gas laser has obvious advantages and has gradually developed into an important candidate in high-precision laser processing, lidar system, space technology, laser medicine and other fields.

Laser Cutting Machine 1000W CNC Fiber Laser Cutter Sheet Metal

PRODUCT SPECIFICATIONS

Model	3015	4020	6020	Option
Working area	3000*1500mm	4000*2000mm	6000*2000mm	According to demands
Maxim running speed	70m/min
Laser wavelength	1080 nm
Minimum cutting line width	0.1mm
Rated output power	1000W
Repeated positioning accuracy of worktable	≤±0.015㎜
Maximum load of worktable	500KG
Z axis travel	120mm
Machine power	12KW
Chiller	2kw
Power supply	380v±10%
Red light positioning	provide
X/Y axis positioning accuracy	±0.03mm
X/Yaxis repeat positioning accuracy	±0.02mm
X/Y axis repeat positioning accuracy	140M/MIN
Maximum acceleration	0.6G-1.5G

product details

sample

Fiber Laser Cutting Equipment is suitable for metal cutting with Stainless Steel Sheet(tube),Mild Steel Plate(tube),Alloy Steel Plate,Spring Steel Sheet(tube),Iron Plate(tube),Galvanized Iron(tube),Galvanized Sheet,Aluminum Plate(tube),Copper Sheet(tube),Brass Sheet,Bronze Plate,Gold Plate,Silver Plate(tube),Metal Plate,Tubes and Pipes,etc.

 Fiber Laser Cutting Machine is widely used in manufacturing Billboard,Advertising,Signs, Signage,Metal Letters,LED Letters,Kitchen Ware,Advertising Letters,Sheet Metal Processing,Metals Components and Parts, Ironware,Chassis,Racks & Cabinets Processing,Metal Crafts,Metal Art Ware,Elevator Panel Cutting,Hardware,Auto Parts,Glasses Frame,Electronic Parts,Nameplates,etc.

Company information

Shandong Honest machinery CO., LTD is one of the largest laser equipment manufacturer in China, the company focus on rate of high power laser processing complete sets of equipment research and development, manufacture and sales, including the high power laser cutting machine, laser welding machine and multi-function laser processing equipment, providing customers with personalized and
 professional laser processing system solutions.

 Honest laser main products cover the full power of fiber laser cutting, laser machining equipment and cutting equipment, products widely used in iron and steel metallurgy, non-ferrous metal, automobile and parts, aviation, military electronics, precision instruments, machinery manufacturing, hardware tools, integrated circuit, solar energy, etc.The company advocates "taking the interests and needs of customers as the foundation", and devotes itself to "creating value for customers and benefits for society". Advanced technology is the guarantee of product quality, the company has completely independent intellectual property
 rights, has established a sound and effective quality management system and internal control system;

 The company's products and services to prevention, the implementation of customer return visit, continuous improvement, quick response, efficient and accurate service mechanism, to ensure the stable and efficient operation of products, maximize to help customers to improve economic benefits. The sales area covers the whole country, and expands to overseas, and the products are
 highly praised by customers.

 The company is willing to work together with all partners to make progress and win-win development together to create the largest high power laser processing equipment manufacturing and research and development base.

Certifications

All products are available upon request, with or without trademarks.If you need OEM service with your own brand or product,please let us know,If you have any other specific requirements,please feel free to contact us. Our factory has obtained the import and export license issued by the Ministry of foreign trade,and passed the ISO9001 quality management system certification and CE certification.In the quality layer by layer,we will wholeheartedly serve for the majority of customers.

Packaging＆Shipping

The product packing process is as follows:
Clean and oil the machine.
Put all accessories onto the table or under the machine.
Pack the machine with protective films and fix machine.
Pack the machine by plywood box.
Container transport to the port.
